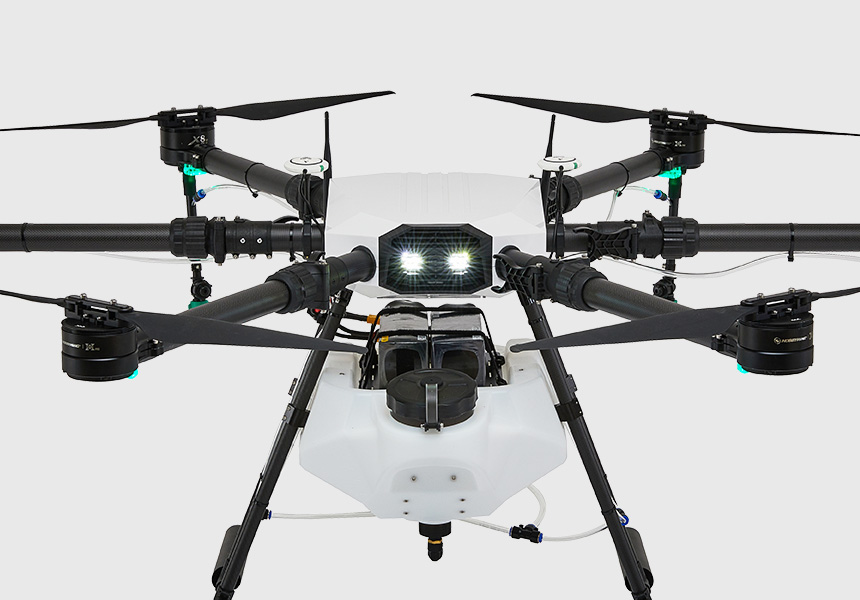

VANDI S1+
The intuitive LED indicator on the rear allows for accurate monitoring of the drone's status from a distance, and the arm fixing holder prevents damage to the motors and propellers during storage and transport.
Hexacopter
Foldable Body
Water Resistant
FPV Camera/ LED Light
Liquid/Fertilizer
Expandability
Sturdy Frame
Aluminum plates and square carbon tubes are applied The sturdy and solid frame is resistant to impact.

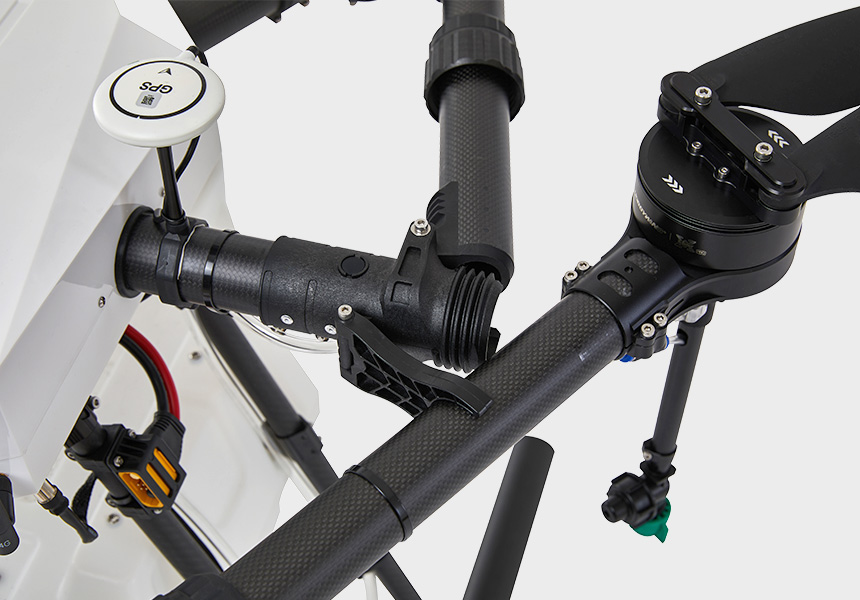

Arm Fixing Holder
The sturdy arm fixing holder prevents damage to the motors and propellers during storage and transport.
Expandability
Mission equipment can be easily replaced for various purposes.
Education
Pesticide Spraying
Firefighting Drone
SPECIFICATION.
Drone
Size (WxLxH)
2422mm X 2204mm X 730mm (Unfolded)
Total Weight
22.5Kg
Maximum Takeoff Weight
38.5Kg
Maximum Payload
16Kg(16L)
Effective Payload
16Kg(16L)
Cruising Speed
3~5m/sec
Maximum Speed
7m/sec
Recommended Operating
0 ~ 39℃
Spraying System
Tank Capacity
Recommended 16L (Maximum 16L)
Nozzle Model
TEEJET DG11002VS
Nozzle Quantity
4 EA
Spray Angle
110°
Controller
Model
SIYI MK15
Maximum Communication Distance
3.5km
Frequency Band
5.8 GHz
Operating Temperature
- 10℃ ~ 55℃
Weight
Transmitter: 850g Receiver: 74g
Battery
10200mAh Li-ion 7.4V 2S 75.48Wh
FPV Camera
Resolution: 480p 24fps(MAX) Angle: FOV 120°
