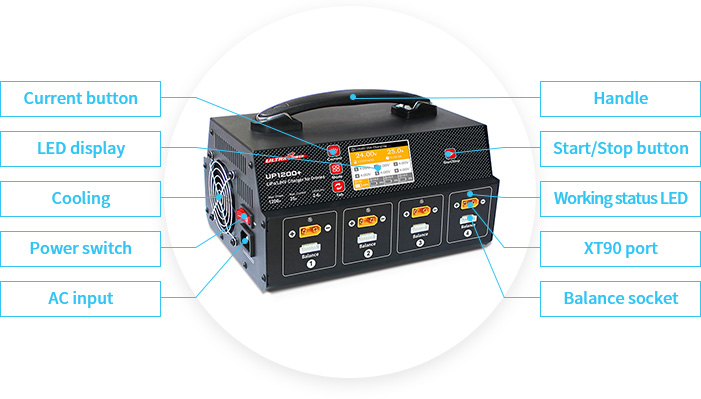

UP1200+
| Input Voltage | AC 220V |
|---|---|
| Charge power | 1200W (600W x 2) |
| Discharge power | 280W(35W x 8) |
| Charge current range | 5A / 10A / 15A / 20A / 25A |
| Battery type | Lipo / LiHV |
| Charging Cell count | 2S – 6S |
| Working mode | Storage /Fast charge / Charge |
| Balance current | 1.5A / cell |
| Weight | 4.61kg |
| Size | 270 x 190 x 160mm |
Language support |
Korean language support is available on Menu, Display, User Manual |
|---|---|
Colorful LED display |
Its colorful display shows clearly the charging status |
Auto sequence charge |
Each side has 4 channels and 8 battery packs can be charged in sequence by two at the same time. |
Three type working mode |
Storage /Fast Charge/ Charge |
Multiple protection |
Protection from over-voltage, over-current, reverse polarity, and over-temperature |
Setting save |
It memorizes the last charging current |
220V |
Adaptor is not required in Korea or Europe area |
2S/3S battery connection port |
It has a separate port to charge 2S/3S radio battery. |
Stable mode |
By this mode, it automatically charge/discharge the battery for storage condition |
UP1200+ |
UP2400-12S |
UP600+ |
|
|---|---|---|---|
| No. of ports | 8 ports (4*2) | 2 ports | 2 ports |
| Charge power | 1200W (600W*2) | 2400W (1200W*2) | 1200W (600W*2) |
| Size | 270*190*16 | 303*262*140 | 268*140*127 |
| Weight | 4.6Kg | 7.4Kg | 3.1Kg |
| Charging cell count | 2S~6S | 6S~14S | 2S~6S |
| Working mode | Storage/Fast charge/Charge | Storage/Charge | Storage / Charge |
| Common feature | Separate port for charging 2S/3S LiPo/LiHV battery is available | ||

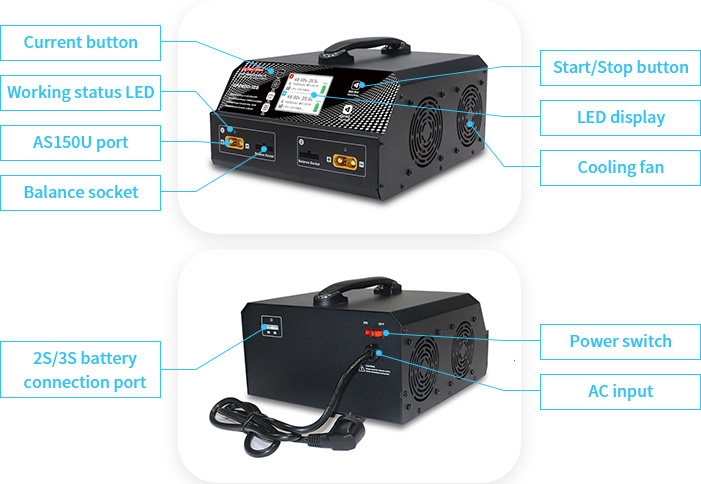

UP2400-12S
| Input Voltage | AC 220V |
|---|---|
| Charge power | 2400W (1200W x 2) |
| Discharge power | 140W(70W x 2) |
| Charge current range | 5A / 10A / 15A / 20A / 25A |
| Battery type | Lipo / LiHV |
| Charging Cell count | 6S – 14S |
| Working mode | Storage/Charge |
| Balance current | 1.5A / cell |
| Weight | 7.4kg |
| Size | 303 x 262 x 140mm |
|
Language support |
Korean language support is available on Menu, Display, User Manual |
|---|---|
|
Colorful LED display |
Its colorful display clearly shows the charging status |
MG-1P battery charge |
12000P battery pack is chargeable |
|
Multiple protection |
Protection from over-voltage, over-current, reverse polarity, and over-temperature |
Two type charge mode |
Storage/Charge |
|
Setting save |
It memorizes the last charging current |
|
220V |
Separate adaptor is not required in Korea or Europe area |
|
2S/3S battery connection port |
Separate port for charging 2S/3S battery is available |

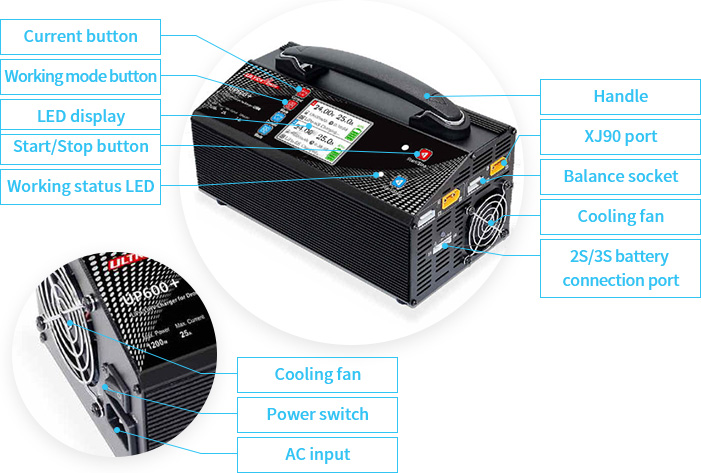

UP600+
| Input Voltage | AC 220V |
|---|---|
| Charge power | 1200W (600W x 2) |
| Discharge power | 80W(40W x 2) |
| Charge current range | 5A / 10A / 15A / 20A / 25A |
| Battery type | Lipo / LiHV |
| Charging Cell count | 2S – 6S |
| Working mode | Storage / Charge |
| Balance current | 1.5A / cell |
| Weight | 3.1kg |
| Size | 268 x 140 x 127mm |
|
Language support |
Korean language support is available on Menu, Display, User Manual |
|---|---|
|
Colorful LED display |
Its colorful display clearly shows the charging status |
|
Multiple protection |
Protection from over-voltage, over-current, reverse polarity, and over-temperature |
|
Two type charge mode |
Storage / Charge |
|
Setting save |
It memorizes the last charging current |
|
220V |
Separate adaptor is not required in Korea or Europe area |
|
2S/3S battery connection port |
Separate port for charging 2S/3S battery is available |
