- VD32
-
The latest technology of SIYI guarantees the stable flight control.
*Video-link transmission range: 2 km
-
Radio-link, Data-link & Video-link
-
HD FPV camera & navigation light
-
App floating window
-
Multi-drone control
-
RC Relay
-
Farming Voice
-
GPS Pointer
-
Charging for mobile device *Optional
- Radio-link, Data-link, Video-link

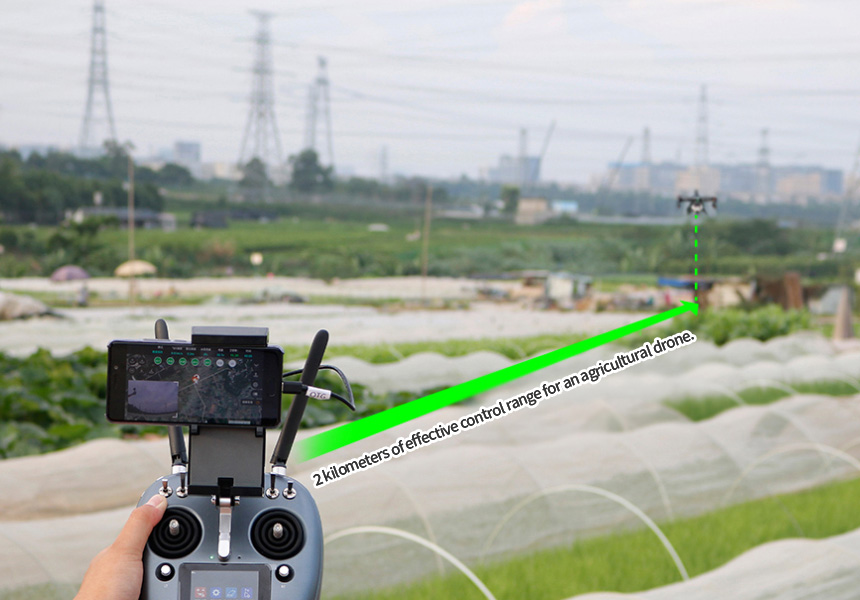

- The SIYI’s latest technology integrates radio-link, data-link and video link in VD32 and provides 2 kilometers of effective control range for an agricultural drone.
- FPV HD Camera
-
FOC(?) 120 °camera angle -
Compatible with all popular flight controllers in markets. Floating window can be zoomed in and out -
Damping plate for vertical or horizontal installation
- Night navigation light
-
Night navigation light of 8W consumption and 120 degree
camera angle gets the flight control safer at dim hours.
-
Operation Specification
- Max range of transmission
- 2km
- Frequency band
- 2.400-2.483GHz
- Channels
- 16 channels
- Applicable aircrafts
- Planes, helicopters, gliders, multi-copters, vehicles, boat, robots
- Compatible FC
-
OPXGUN T1-A
WOOZOOM THEONE-A - A
EFY FINIX200M
JIYI K3-A
BOYING PALADIN V2
CHIAO MATRIX
CFUAS C1-A
PIX
APM
-
FPV Camera
- Resolution
- Max : 480p@24fps
- Camera Angle
- FOV 120°
- Weight
- 108g
- Power consumption
- 8W
- LED type
- Translucent
- LED angle
- 120 °
- Operation temperature
- -10°C ~ 55°C
-
Transmitter
- Video output port
- USB
- Data output port
-
USB, Bluetooth,
WIFI(optional)
- Language support
- Chinese/English
- Size
- 194.5 X 172.5 X 114mm
- Weight
- 610g
- Operation temperature
- 0°C ~ 55°C
- Battery
- Built-in 8000mAh Li-Po
1S 3.7V
- Charging port
- Micro-USB (5V/2A)
-
Receiver
- Signal output
-
16 channels of S-Bus
5 channels of PWM
- Port for data transmission
- UART, CAN(optional)
- Size
- 59 X 59 X 16mm
- Weight
- 50g
- Antenna Gain
- 5dBi
- Working voltage
- 15 – 50V
- Telemetry voltage
- 전 15 – 50V
- Operation temperature
- -10°C ~ 55°C
