PREX6-H10
Cartridge type quick-release liquid tank and battery case make the recharging
and refilling quicker, which saves the labor hours remarkably.
  • 10L liquid tank

  • Hexa-copter

  • Quick release Spray system & battery

  • Foldable arms

  • Waterproof

  • FPV camera / LED light

Improved Stability

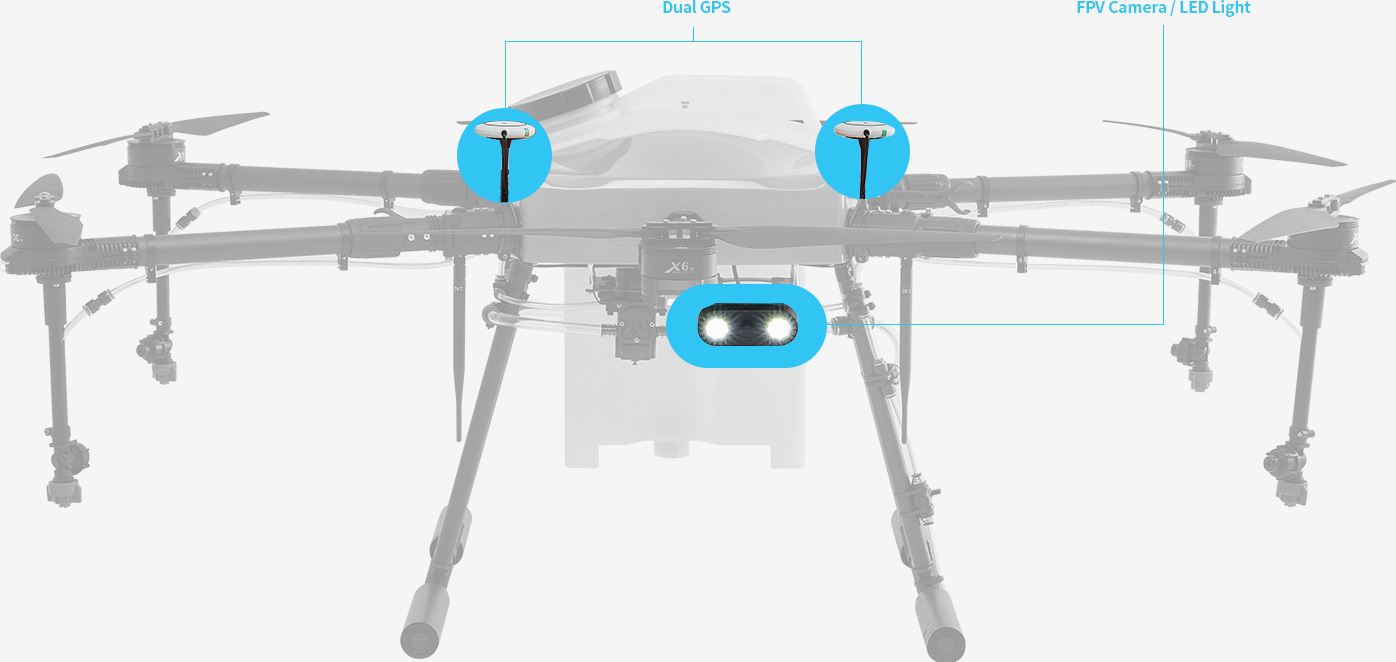

Dual GPS antennae enhance the accuracy in location control.
FPV camera with LED flash light on aircraft’s front head provides a clear vision to the pilot.
Quick-release liquid tank and battery case
Cartridge type quick-release liquid tank and battery case make the recharging and refilling quicker, which saves the labor hours remarkably.
Waterproof body
Beautifully curved orange body is waterproof with precise sealing covers, and the aircraft is protected from dust and liquid chemicals. The user can wash off the drone after use and maintain the aircraft in clean condition.
Flexible nozzle bar
Nods are made of soft material so that the spray system is protected from breaking. Teejet nozzles in the end of the long straight nozzle bars spray the liquid to the wanted spots effectively.
Specification
Aircraft Operation Specification

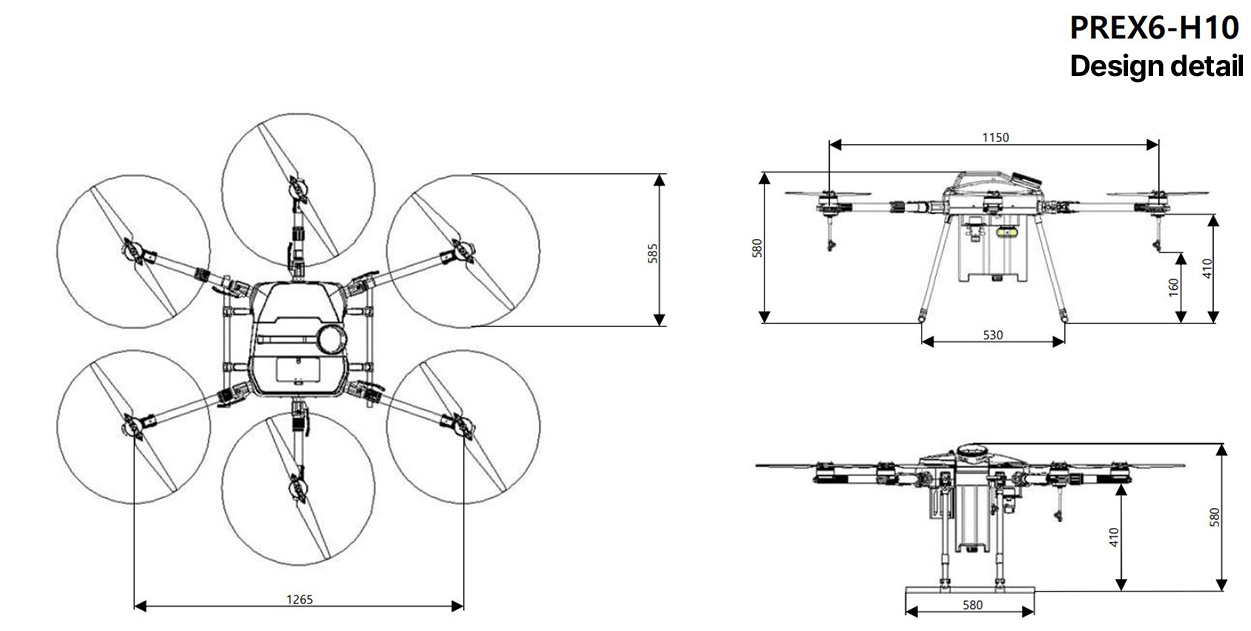

Aircraft size
(Length x width x height)

1740mm X 1850mm X 580mm (Spread)

1000mm X 740mm X 580mm (Fold)

Dry operating weight with battery

15.4Kg

Maximum take-off weight

24.9Kg

Regulated Payload

9Kg(9L)

Payload (Max)

9Kg(9L)

Cruising Speed

3~5m/sec

Maximum Speed 7m/sec
Operating temperature
(Recommended)
0 ~ 39℃
Spray System
Tank capacity

9 L (Recommend) 10L (Maximum)

Nozzle Model

TEEJET DG110015VS

Number of Nozzles

4 EA

Spray angle

110°

Transmitter ( Controller )
Model

SIYI VD32

Max range of transmission

2km

Frequency band

2.4 GHz

Operating temperature

- 10℃ ~ 55℃

Weight

Transmitter : 610g Receiver : 50g

Battery

8000mAh Li-Po 1S 3.7V

FPV Camera Resolution : 480p 24fps(MAX)
Angle : FOV 120°
